Description

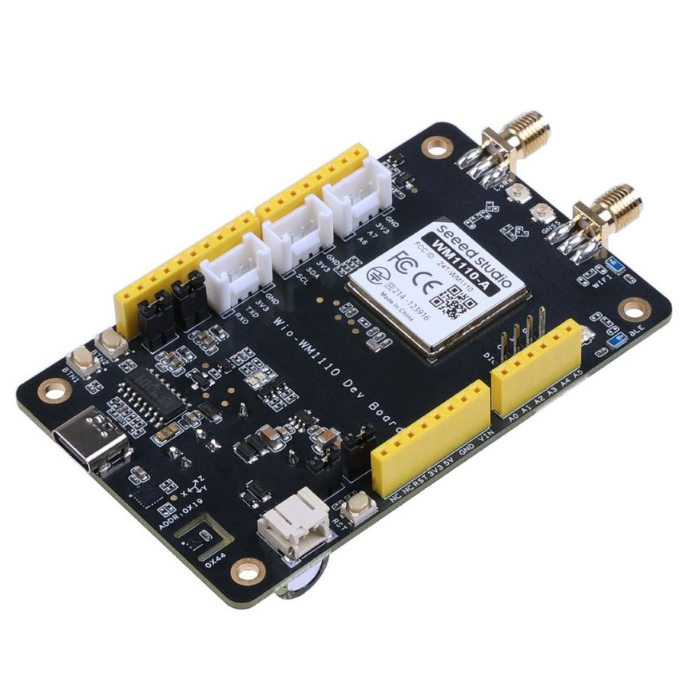

Wio-WM1110 Dev Kit, built-in Semtech LR1110 and Nordic nRF52840
The Seeed Studio Wio-WM1110 Dev Kit is the ultimate solution for your IoT projects, offering long-range communication, precise location tracking, and versatile customization options. With features like LoRa® technology, GNSS, and an extensive Grove-compatible interface, this dev kit empowers developers to create innovative solutions.
The integration of sensors and multiple power supply modes ensures adaptability to diverse environmental conditions. Whether you're a seasoned developer or just starting, Wio-WM1110 provides the tools and capabilities you need.
This dev kit guarantees top-notch quality and durability. Its open-source nature and compatibility with popular protocols make it an ideal choice for IoT enthusiasts and professionals alike.
Note : Wio-WM1110 module has been perfectly applied to SenseCAP T1000, SenseCAP T1000 is a LoRaWAN® card size tracker for seamless indoor & outdoor positioning. It boasts months of battery life and is equipped with temperature, light, and motion sensors, making it ideal for a variety of location-based applications.
Features:
- Low-Power High-Sensitivity LoRa/(G)FSK Half-Duplex RF Transceiver: Frequency bands support in the range 863- 928MHz
- Multi-Purpose Radio Front-End for Geolocation: GNSS (GPS/ BeiDou)、Wi-Fi、Bluetooth
- Rich GPIOs and Compatible with Grove: Over 400 Grove-compatible for flexible expansion options.
- Open Source Platform: Leverage the extensive LR1110 and nRF52840 open-source ecosystem for infinite application possibilities.

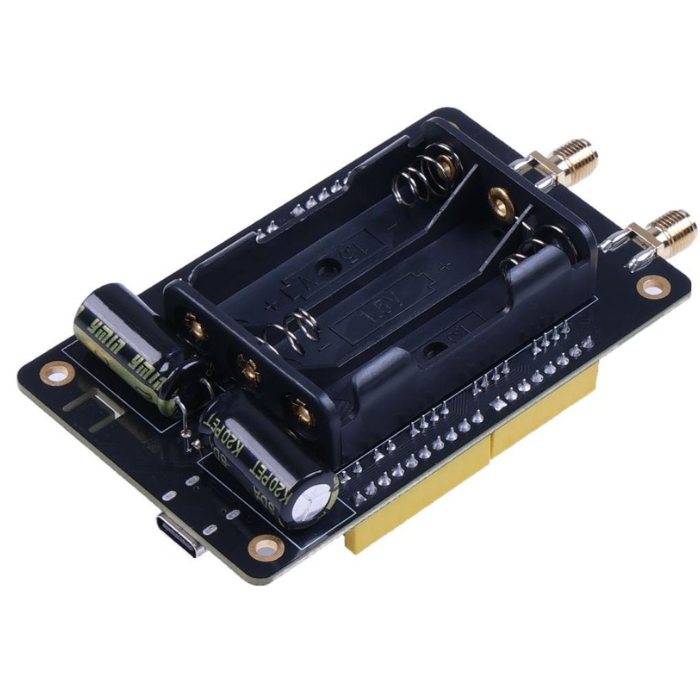

- Built-in Sensors and Multiple Power Supply Modes: Temp&Humidity sensor and 3-Axis accelerometer, support both solar power and battery-powered.
Applications:
- Long-Range Communication: Enables reliable wireless communication with Semtech's LoRa® technology, covering distances of up to 10km.
- Precise Location Tracking: Offers both outdoor and indoor positioning accuracy through integrated GNSS (GPS/BeiDou) and Wi-Fi scanning.
- Extensive Expansion Options: Provides over 400 Grove-compatible interfaces for customizable and flexible project applications.
- Open Source Platform: Allows for limitless application possibilities by leveraging the LR1110 and nRF52840 open-source ecosystem.
- Built-in Sensors: Facilitates comprehensive environmental data collection with temperature, humidity, and 3-axis accelerometer sensors.
- Power Flexibility: Supports both solar and battery power deployment, enhancing adaptability to diverse environmental conditions.

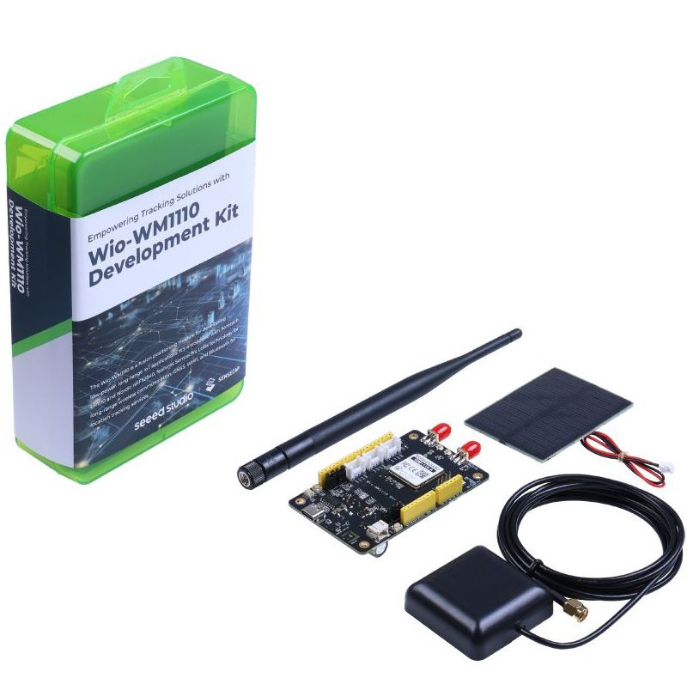

Package Includes:
- 1 x Wio-WM1110 Dev Kit, built-in Semtech LR1110 and Nordic nRF52840
Specifications:
LoRa®WAN Protocol |
V1.0.4 |
Frequency |
863~928MHz |
Sensitivity |
-125dBm @125K/SF7 -141dBm @125K/SF12 |
Output Power |
20dBm max @LoRa® |
Positioning Technology |
GNSS(GPS,BeiDou),WiFi |
Range |
2~10km (Depends on antenna and environment) |
