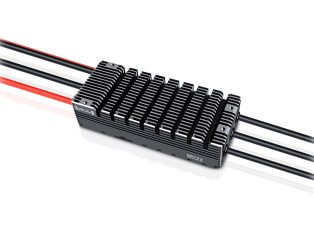

The U300 V2 is a powerful Brushless DC Motor Automatic Electric Speed Controller designed for high-performance applications, such as powered paragliders. With a continuous current capacity of 300A and a peak current of 320A, it is engineered for efficiency under optimal cooling conditions. Brushless DC Motor Automatic Electric Speed Controller supports 5 to 14S LiPo batteries, with a compatible throttle pulse width range of 1050us to 1940us.
Features:
- Protection Systems: Includes short circuit, voltage, and temperature protections for enhanced safety.
- Throttle Adjustment: Compatible with 3.3V/5V PWM input signals.
- Robust Design: IPX4 rating ensures resistance to water and dust.
- Communication Interface: RS-485 for seamless integration with flight controllers.
Specifications:
- Size: 176.0 x 73.0 x 42.2 mm
- Weight: Approximately 645g (excluding wires)
- Operating Temperature: -25 to 60°C
- Power/Motor Lines: 7AWG
Package include:
1 x XC ESC – 12s 300A 48V 13HP Powered Paraglider Brushless DC Motor Automatic Electric Speed Controller
