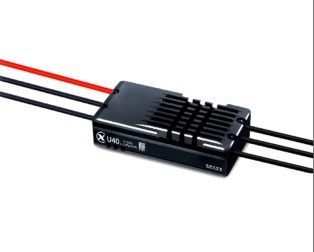

The U40 V2 is a compact and efficient Brushless DC Motor Electric Speed Controller designed for various applications, supporting 5 to 14S LiPo batteries. With a continuous current rating of 40A and an instantaneous current capability of 60A, this ESC is optimized for performance under good cooling conditions. Brushless DC Motor Electric Speed Controller features a throttle pulse width range of 1050us to 1940us, making it compatible with both 3.3V and 5V input signals.
Features:
- Compact Design: Lightweight at approximately 37g, ideal for space-constrained applications.
- Protection Rating: IPX4 rated for resistance against water and dust.
- Wide Operating Range: Functions effectively in temperatures from -25 to 60°C.
- Signal Frequency: Supports a frequency range of 50-500Hz.
Specifications:
- Type: Brushless DC (BLDC) Motor Controller
- Continuous Current: 40A (under good cooling conditions)
- Instantaneous Current: 60A
- Input Voltage: 5~14S LiPo
- BEC: None
- PWM Input Signal Voltage: 3.3V/5V (compatible)
- Throttle Pulse Width: 1050us – 1940 us
- Compatible Signal Frequency: 50 – 500 Hz
Package include:
1 x XC ESC – 12s 40A 48V 3HP Brushless DC Motor Electric Speed Controller
