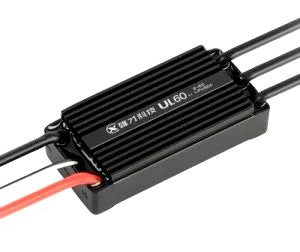

The U60 V2 is a high-performance Brushless DC Motor Electric Speed Controller designed for demanding applications, supporting 5 to 14S LiPo batteries. With a continuous current rating of 60A and a peak current capability of 80A, this ESC ensures reliable operation under optimal cooling conditions.Brushless DC Motor Electric Speed Controller features a throttle pulse width range of 1050us to 1940us, compatible with both 3.3V and 5V input signals, making it versatile for various setups.
Features:
- Compact and Lightweight: Weighs approximately 42.5g, suitable for space-constrained designs.
- Protection Rating: IPX4 rated, providing resistance against water and dust.
- Wide Temperature Range: Operates efficiently between -25°C and 60°C.
- Robust Design: 14AWG power and motor lines for enhanced durability.
Specifications:
- Type: Brushless DC (BLDC) Motor Controller
- Continuous Current: 60A (under good cooling conditions)
- Instantaneous Current: 80A
- Input Voltage: 5~14S LiPo
- BEC: None
- PWM Input Signal Voltage: 3.3V/5V (compatible)
- Throttle Pulse Width: 1050us – 1940us
- Weight: ≈ 42.5g (excluding wires)
- Power/Motor Lines: 14AWG
- Protective Grade: IPX4 (water and dust resistant)
- Working Temperature: -25°C to 60°C
Package include:
1 x XC ESC – 12s 60A 48V 4HP Brushless DC Motor Electric Speed Controller
