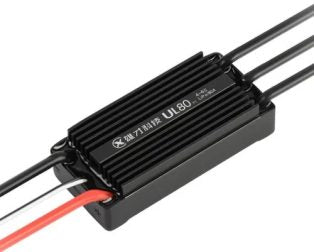

XC ESC – 12s 80A 48V Fpv BLDC Motor Electric Speed Controller

The U80 V2 is a robust Brushless Fpv BLDC Motor motor speed controller designed for high-performance applications, supporting 5 to 14S LiPo batteries. With a continuous current rating of 80A and a peak current capability of 120A, it is engineered for optimal performance under good cooling conditions. The ESC Fpv BLDC Motor features a throttle pulse width range of 1050us to 1940us, making it compatible with both 3.3V and 5V input signals.

Features:

1. High Protection Grade: IP67 rated with glue filling for superior water and dust resistance.
2. Durable Design: Built to withstand harsh conditions while maintaining reliability.
3. Wide Operating Range: Functions effectively in temperatures from -25°C to 60°C.
4. Versatile Connections: Supports compatible signal frequencies from 50 to 500Hz.

Specifications:

1. Type: Brushless DC (BLDC) Motor Controller
2. Continuous Current: 80A (under good cooling conditions)
3. Instantaneous Current: 120A
4. Input Voltage: 5~14S LiPo
5. BEC: None
6. PWM Input Signal Voltage: 3.3V/5V (compatible)
7. Throttle Pulse Width: 1050us – 1940us
8. Compatible Signal Frequency: 50 – 500Hz
9. Weight: ≈ 90g (excluding wires)
10. Power/Motor Lines: 12/14 AWG
11. Protective Grade: IP67 (glue filling for water and dust resistance)
12. Working Temperature: -25°C to 60°C

Package include:

1 x XC ESC – 12s 80A 48V Fpv BLDC Motor Electric Speed Controller
