Description

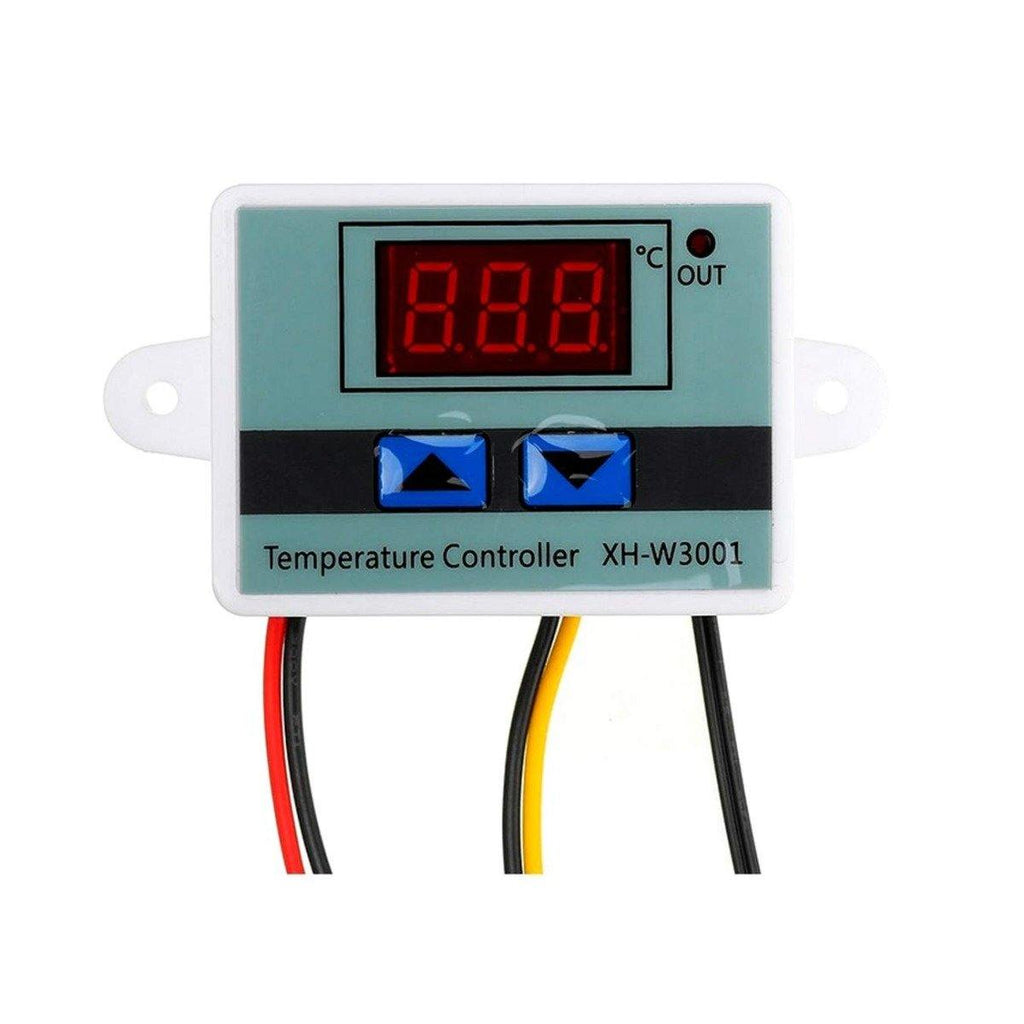

XH-W3001 24V 240W Digital Thermostat Switch
This is XH-W3001 DC 24V 240W Digital Temperature Controller Microcomputer Thermostat Switch. A temperature measurement and Controller with high accuracy and precision at a very low cost.
The Digital Thermostat switch offers a high-temperature control precision of 0.1℃. The temperature control range from -50℃ to 110℃. The LED Display shows the results clearly. One can directly install or embed the XH-W3001 in the industrial control equipment panel, which is convenient and quick.

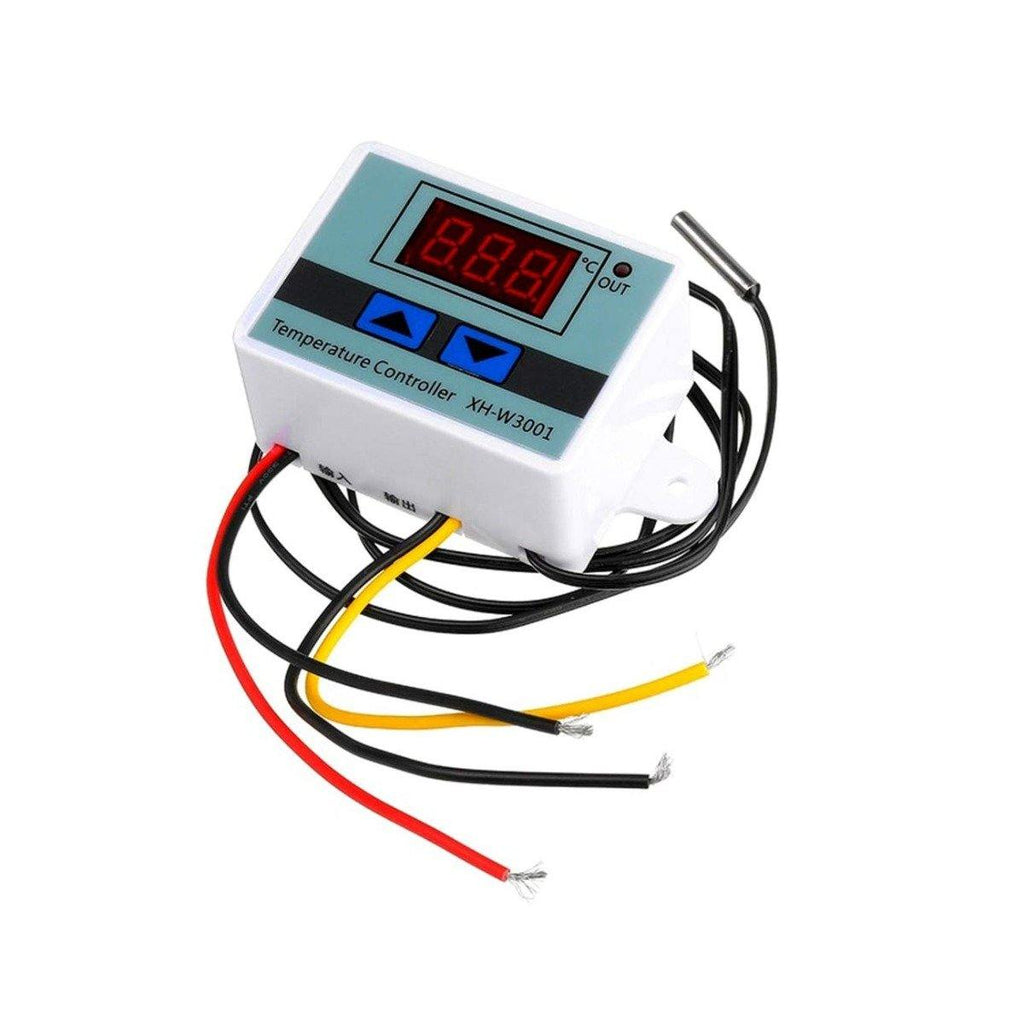

It features a 1M probe made up of stainless steel material which makes it waterproof and does not let it rust easily. Also, all the delicate and sensitive components are kept safe in ABS flame retardant housing which is avirulent and environmentally protective.
Digital display LLL: If the digital tube displays LLL, the sensor is faulty. Please repair the sensor or replace the sensor.
Digital display HHH: If the digital tube displays HHH, this is because the detected temperature is beyond the measurement range.
BUTTON FUNCTIONS OF THE XH-W3001 CONTROLLER:
- Press UP to show the start temperature button.
- On a Long press of the UP button, the display starts flashing, then press the UP or DOWN button Set the beginning of the temperature value
- Press Down the display button to stop the temperature.
- On the Long press of the Down button, the display starts flashing, then press the Up or Down button Set to stop the temperature value.
PACKAGE INCLUDES:
- 1 x XH-W3001 DC 24V 240W Temperature Controller
SPECIFICATIONS:
| DC Output | DC 24V 240W |
| Temperature Measuring Range | 50~110°C |
| Temperature Control Range | 50~110°C |
| Control Accuracy | Up to 0.1℃ |
| Dimensions | 11 x 5 x 3cms |
| Weight | 150 grams |
