Description

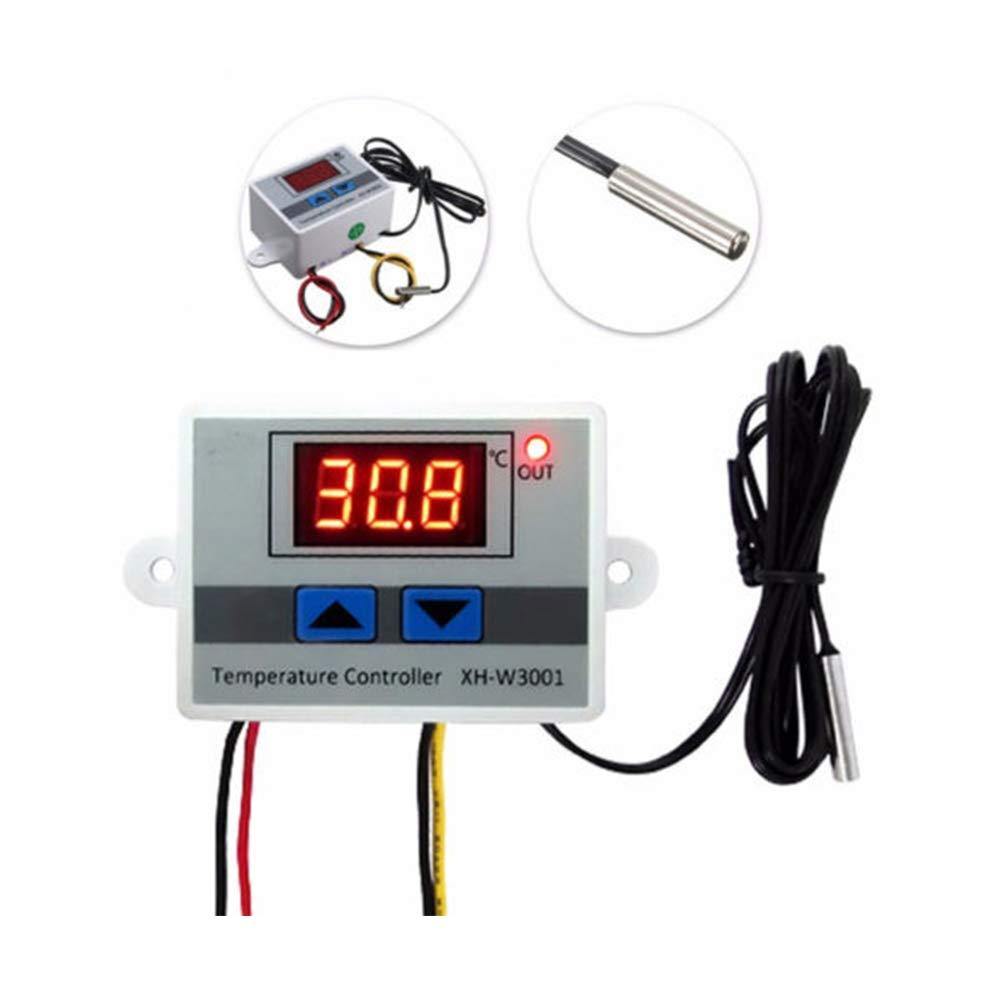

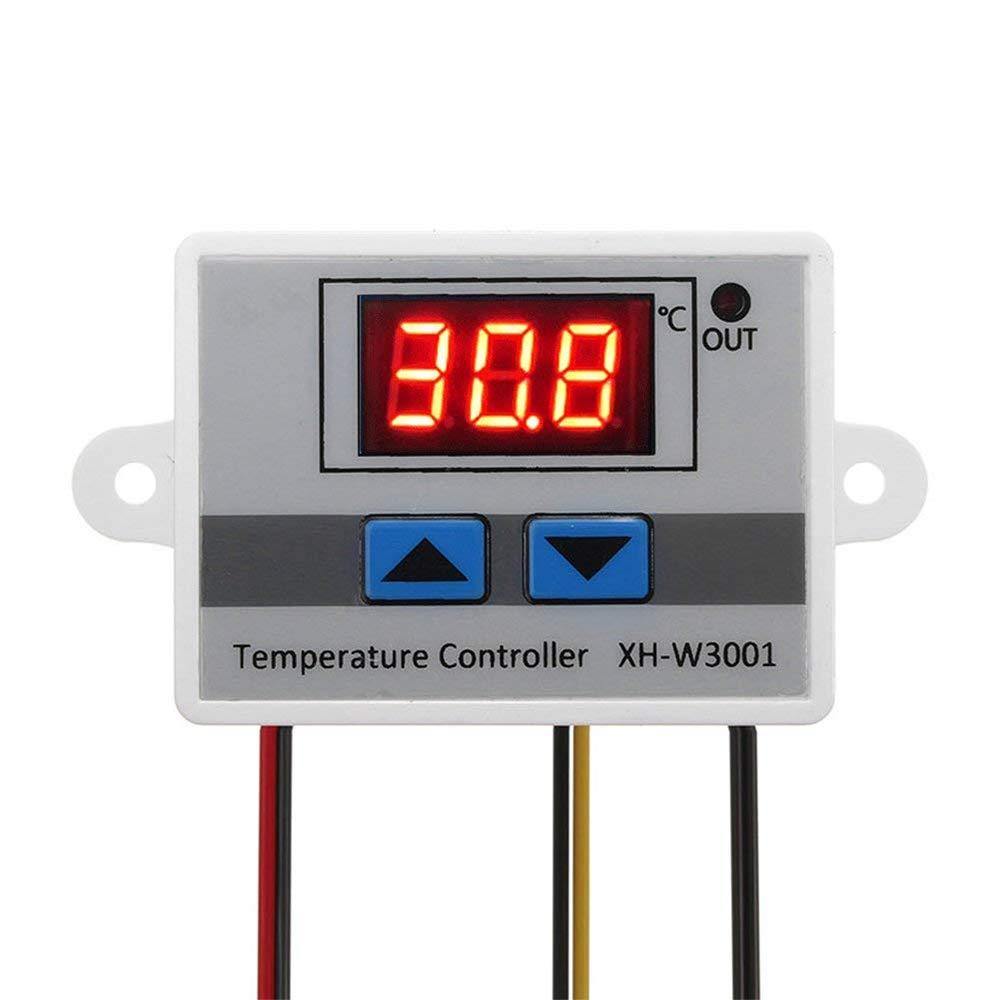

XH-W3001 DC 12V 120W Digital Display LED Temperature Controller with Thermostat Control Switch Probe
This is XH-W3001 DC 12V 120W Digital Temperature Controller Microcomputer Thermostat Switch. A temperature measurement and Controller tool with high accuracy and precision at a very low cost. It offers a high-temperature control precision of 0.1℃. The temperature control range from -50℃ to 110℃.
The LED Display shows the results clearly. One can directly install or embed the XH-W3001 in the industrial control equipment panel, which is convenient and quick. This temperature controller features a 1M probe made up of stainless steel material which makes it waterproof and does not let it rust easily. Also, all the delicate and sensitive components are kept safe in ABS flame retardant housing which is avirulent and environmentally protective.
Digital display LLL: If the digital tube displays LLL, the sensor is faulty. Please repair the sensor or replace the sensor.
Digital display HHH: If the digital tube displays HHH, this is because the detected temperature is beyond the measurement range.

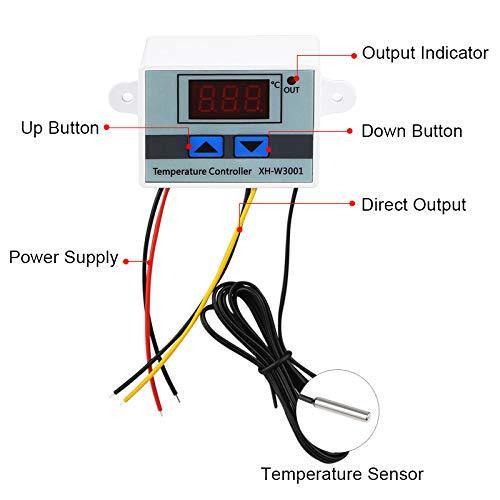

BUTTON FUNCTIONS OF THE XH-W3001 CONTROLLER:
- Press UP to show the start temperature button.
- On Long press of the UP button, the display starts flashing, then press the UP or DOWN button Set the beginning of the temperature value
- Press Down the display button to stop the temperature.
- On the Long press of the Down button, the display starts flashing, then press the Up or Down button Set to stop the temperature value.
Applications:
- Hatching area
- Incubation
- Equipment case
- Air conditioning system
- Temperature control protection
- Cabinet cooling system
Also check the XH-W3001 DC 24V 240W Digital Temperature Controller Microcomputer Thermostat Switch. It is a digital thermostat switch designed for heating control in refrigeration and is suitable for seafood machines.
PACKAGE INCLUDES:
- 1 x XH-W3001 DC 12V 120W Temperature Controller
SPECIFICATIONS:
| DC Output | DC 12V 120W |
| Temperature Measuring Range | -50~110°C |
| Temperature Control Range | -50~110°C |
| Control Accuracy | Up to 0.1℃ |
| Dimensions | 11 x 5 x 3cms |
| Weight | 150 grams |
