Description

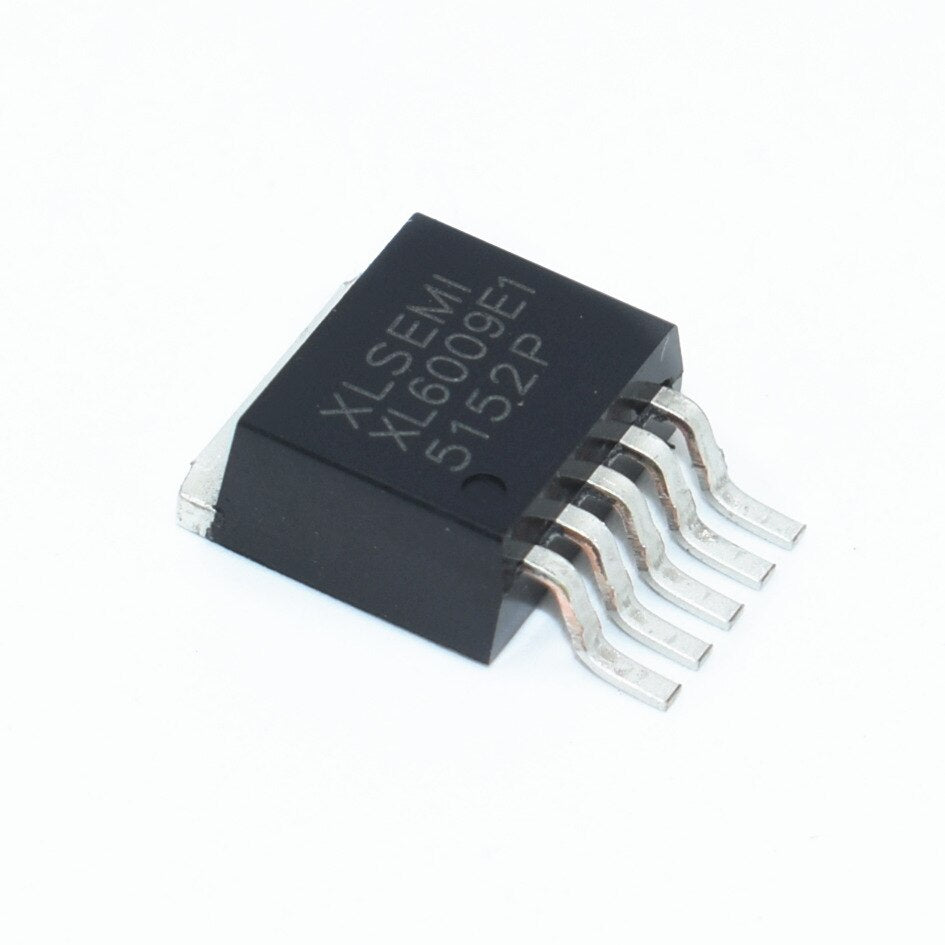

The XL6009 regulator is a 400KHz 60V 4A Switching Current Boost / Buck-Boost / Inverting DC/DC Converter with a wide input range that can generate positive or negative output voltage.
It can be set up as a boost, a flyback, a SEPIC, or an inverting converter.
The current mode design of the XL6009's built-in N channel power MOSFET and fixed frequency oscillator results in steady performance over a wide range of supply and output voltages.
The XL6009 regulator is designed specifically for use in portable electronic equipment.
Features
- Wide 5v to 32v input voltage range
- Maximum 4A switching current
- High efficiency upto 94%
- Fixed 400KHz Switching Frequency
- Built in Thermal Shutdown Function
Specification
| Model | XL6009 |
| Mounting type | D2PAK |
| Storage Temperature | 65ºC to 150ºC |
| Input Voltage | 0.3 v to 36 v |
| Efficiency | Up to 94% |
| Country of Origin | China |
