Description

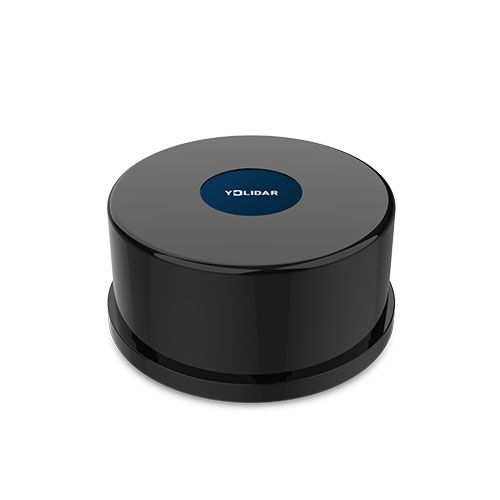

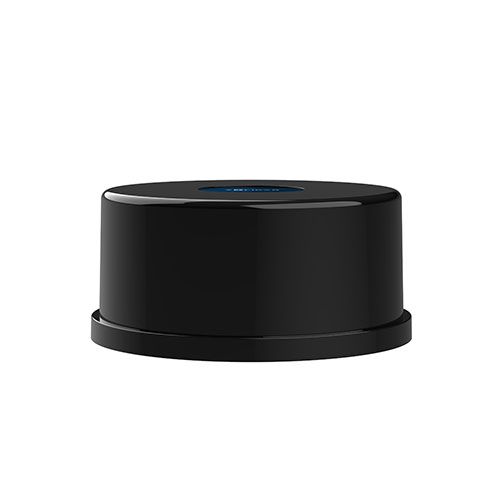

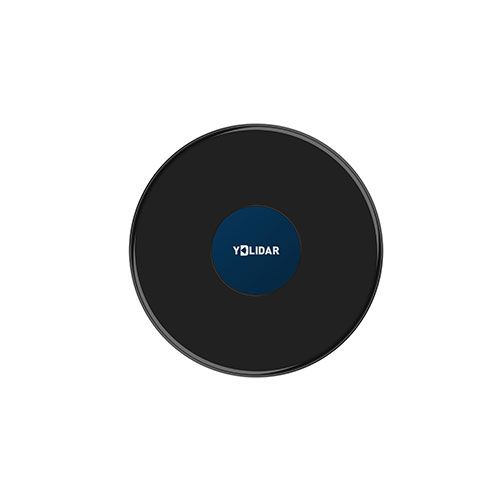

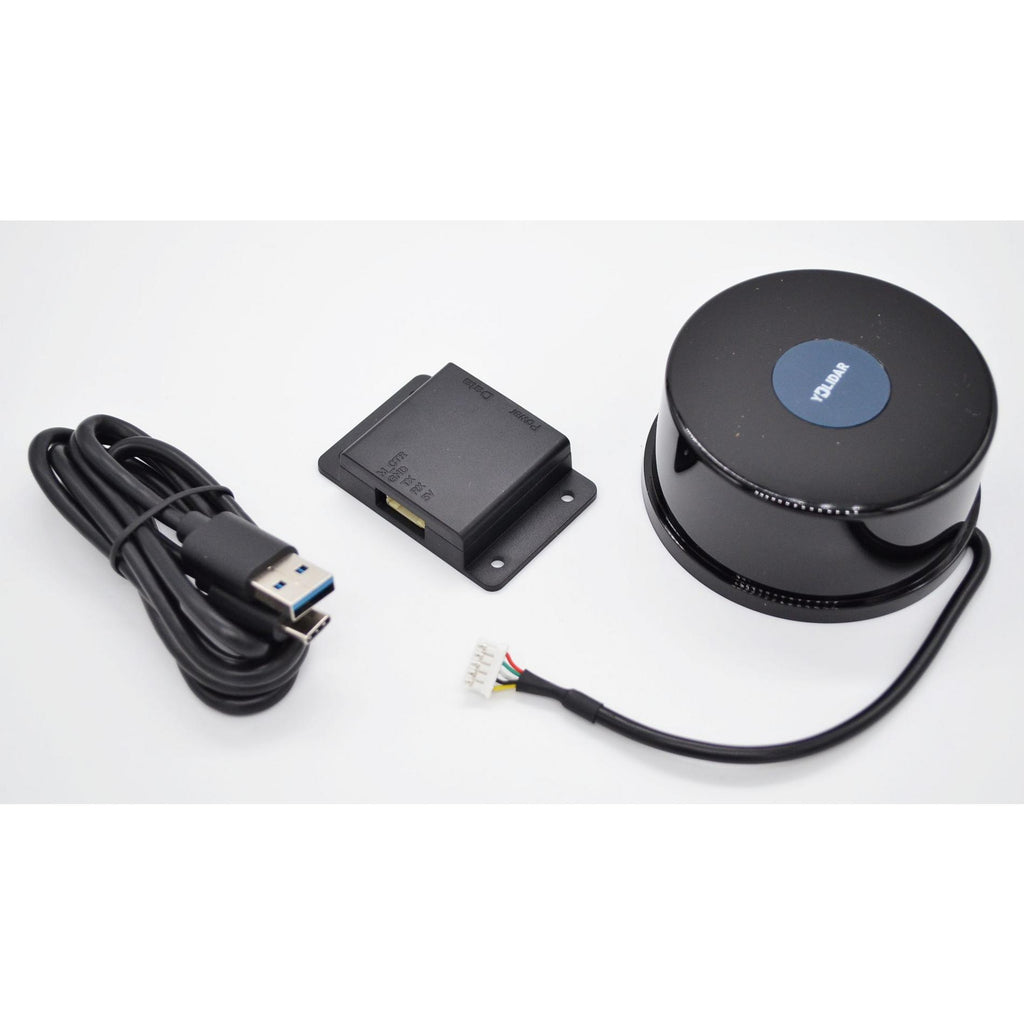

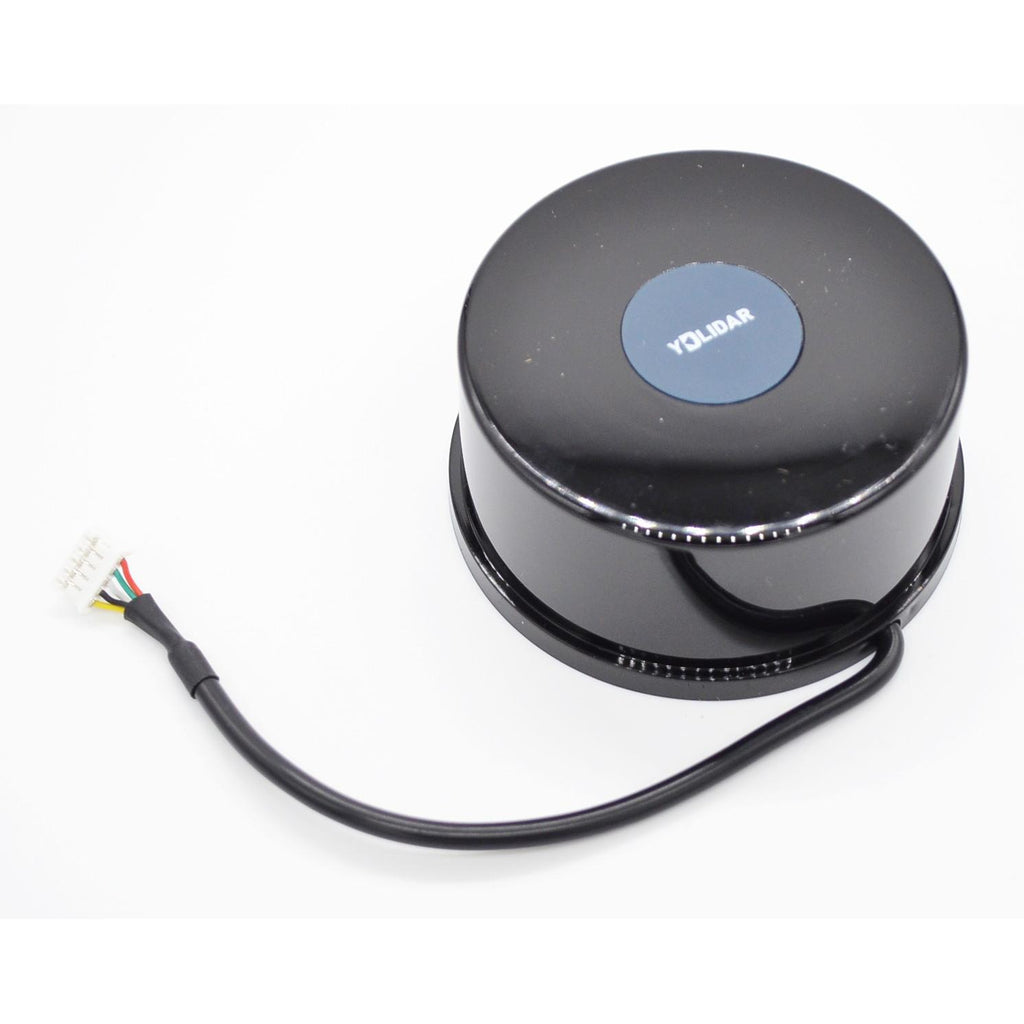

YDLIDAR TG30 is a 360 degrees 2D LiDAR. Based on the principle of ToF, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 degrees to continuously obtain the angle information and output the point cloud data of the scanning environment while ranging.
Features
- IP65 protection level
- 360 degrees omnidirectional scanning and 5-12 Hz frequency
- Ranging frequency up to 20 kHz
- High accuracy, stable performance
- Strong resistance to ambient light interference
- Class I eye safety
Specifications
| Range Frequency | 20000 Hz |
| Scan Frequency | 5-12 Hz |
| Range Distance | 0.05-30 m |
| Scan Angle | 360° |
| Angle resolution | 0.09°-0.22° |
| Size Φ | 75.8 x 34.7 mm |
Applications
- Robot navigation and obstacle avoidance
- Industrial automation
- Regional security
- Smart transportation
- Environmental scanning and 3D reconstruction
- Digital multimedia interaction
- Robot ROS teaching and research
