Description

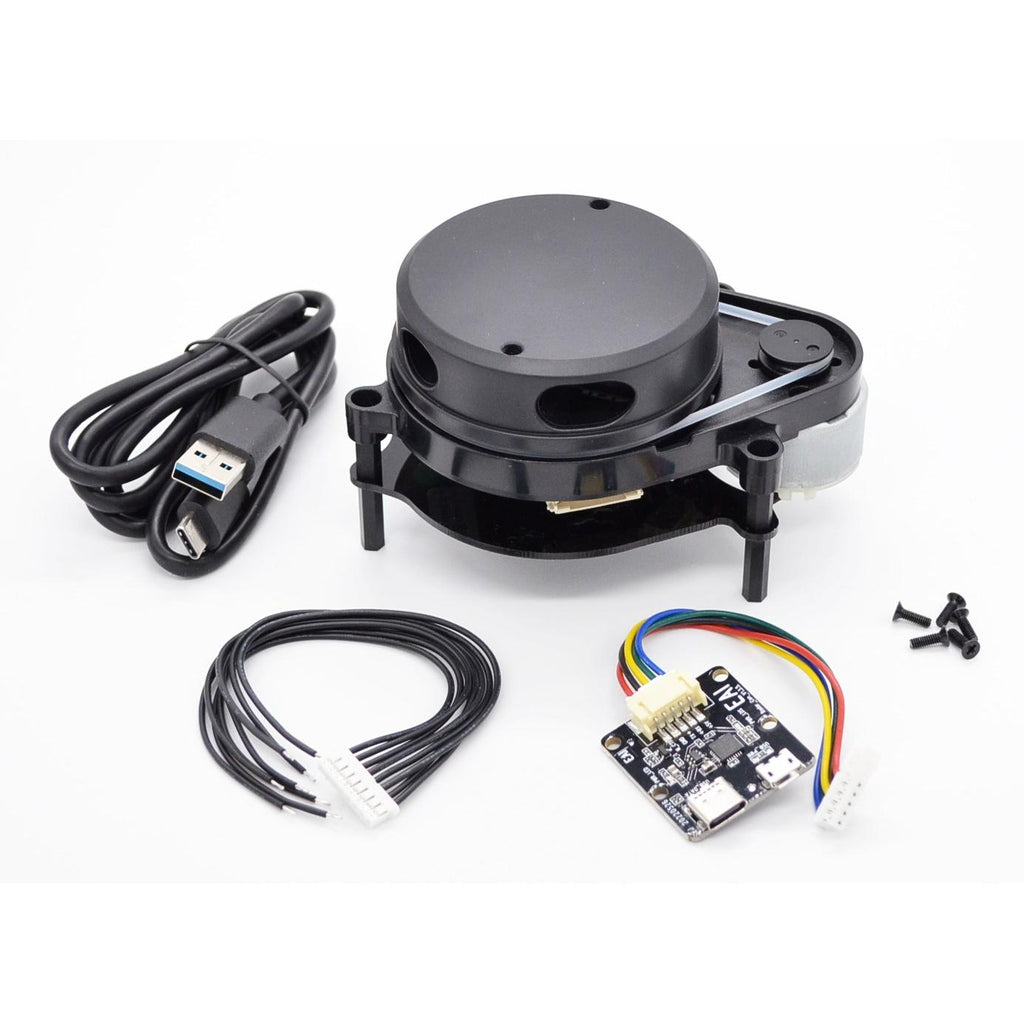

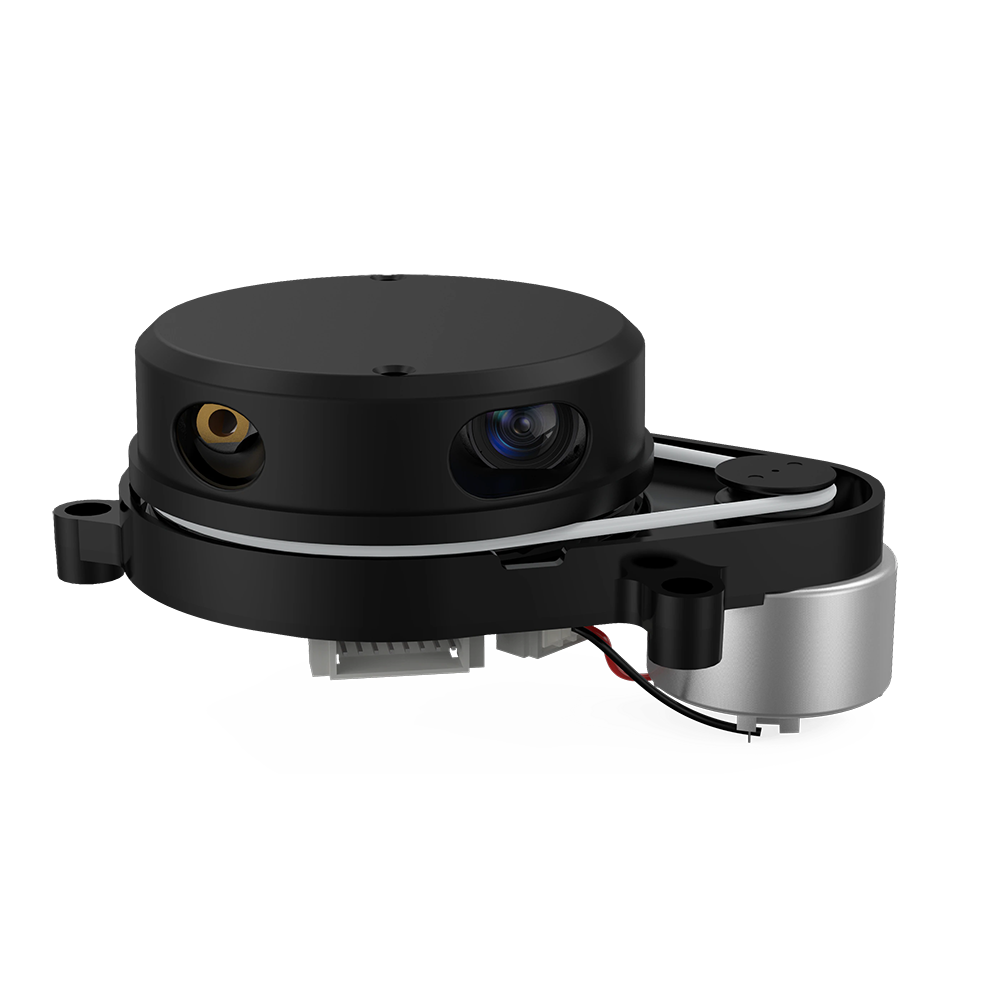

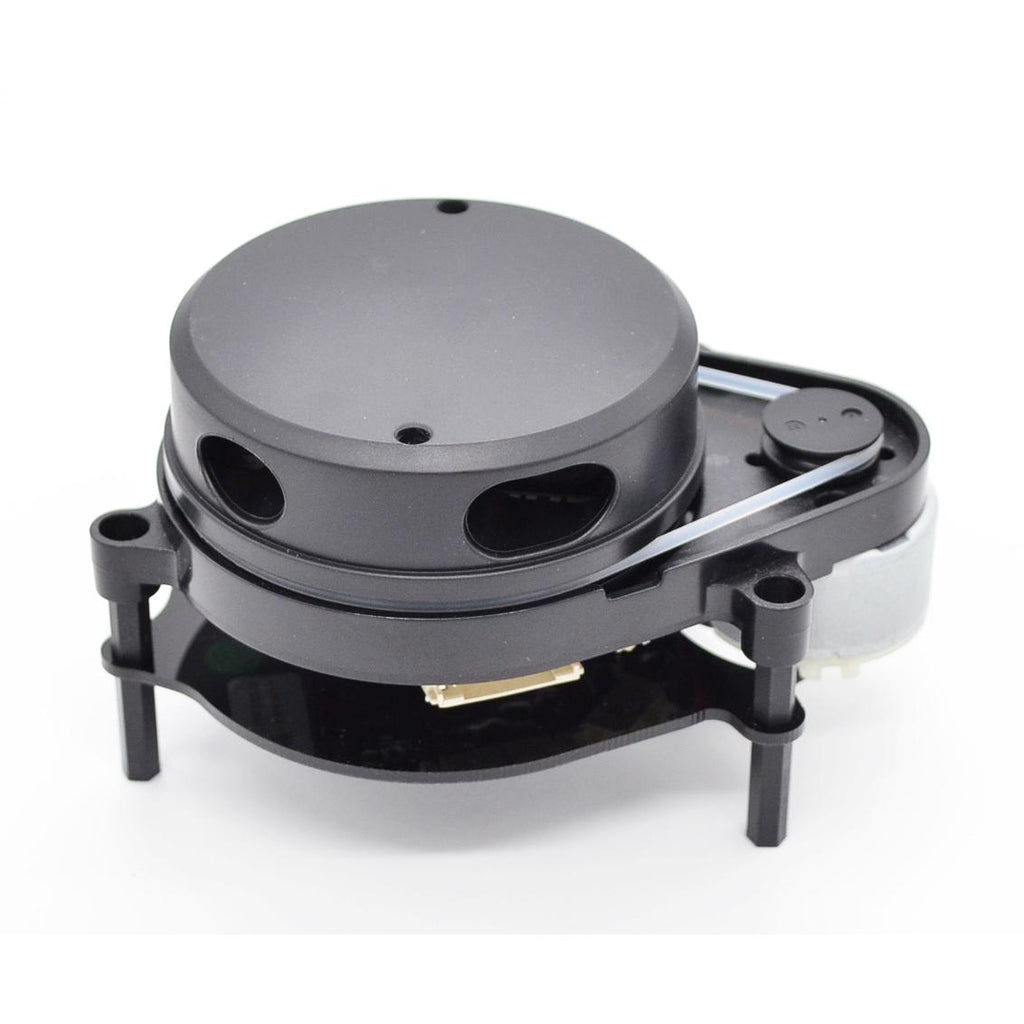

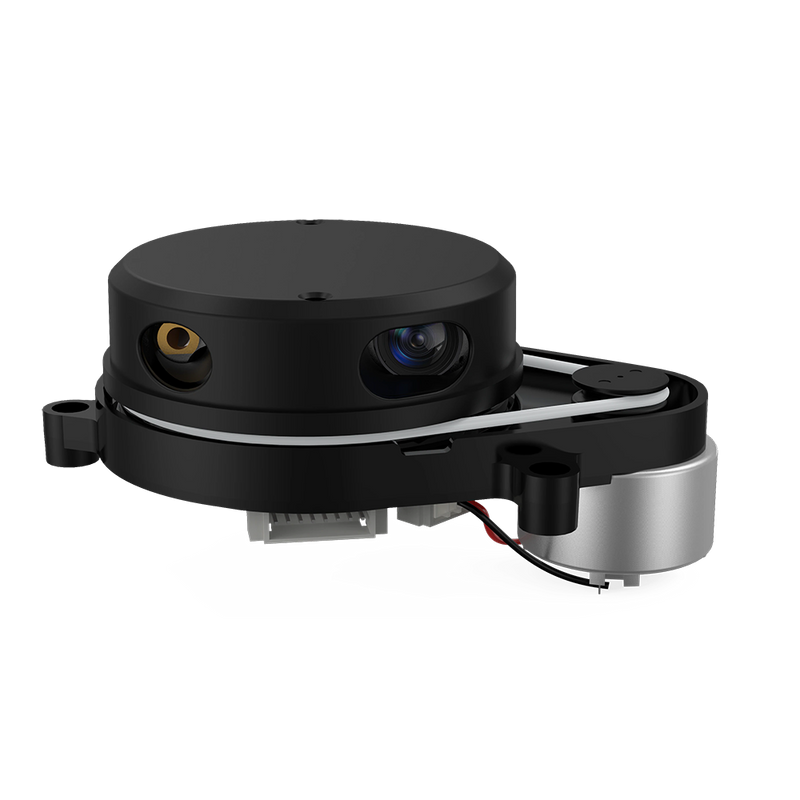

YDLIDAR X4 PRO is a 360 degrees two-dimensional rangefinder (hereinafter referred to as X4PRO) developed by EAI team. Based on the principle of triangulation, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high- accuracy distance measurement. The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.
Features:
- 360 degrees omnidirectional scanning ranging distance measurement
- Small distance error, stable performance and high accuracy
- Wide ranging distance
- Strong resistance to ambient light interference
- Low power consumption, small size and long service life
- Laser power meets Class I laser safety standards
- Adjustable motor speed, scanning frequency is 6~12Hz
- High-speed ranging, ranging frequency up to 5kHz
Application:
- Robot navigation and obstacle avoidance
- Robot ROS teaching and research
- Regional security
- Environmental scanning and 3D reconstruction
- Navigation and obstacle avoidance of robot vacuum cleaner/ROS Learning robot
Download
Specifications:
| Frequency Range |
5000 |
| Operating Distance Range (Meter) |
.12-10 |
| Scanning frequency (Hz) |
6-12 |
| Field of view |
0-360 |
| Absolute error (cm) |
2 |
| Relative error |
3.5% |
| Angle resolution |
0.43(frequency@6Hz – 0.86(frequency@12Hz) |
| Shipment Weight |
0.178 kg |
| Shipment Dimensions |
11 × 7 × 5 cm |
